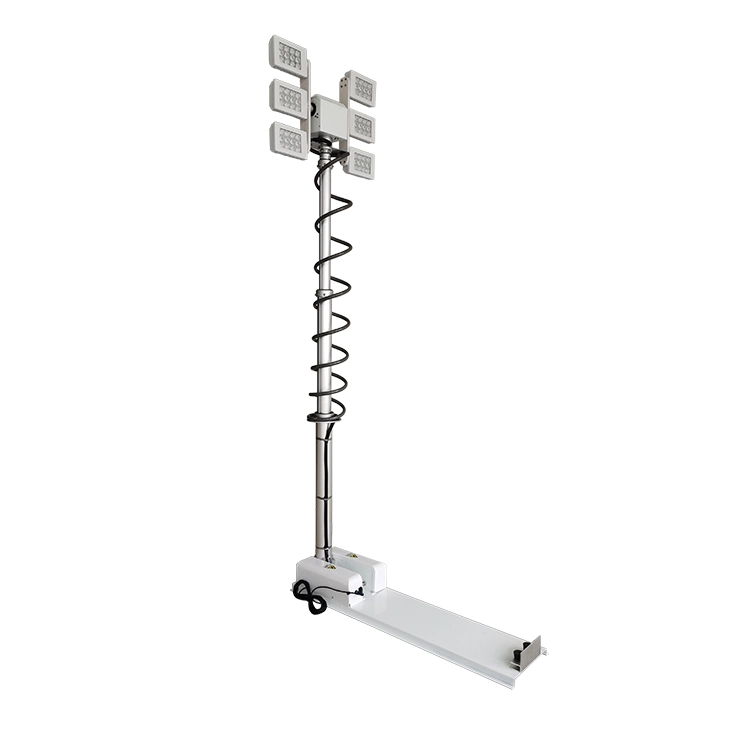

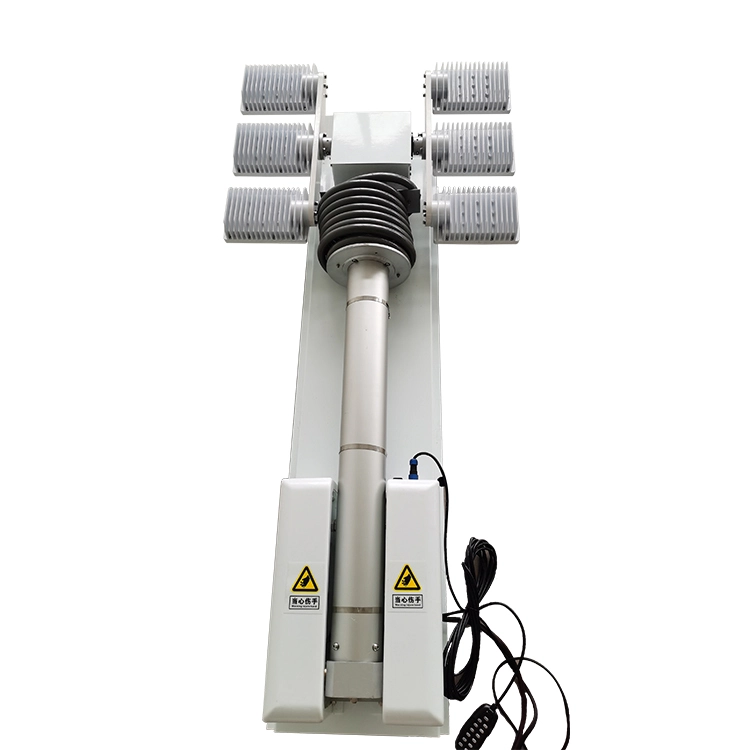

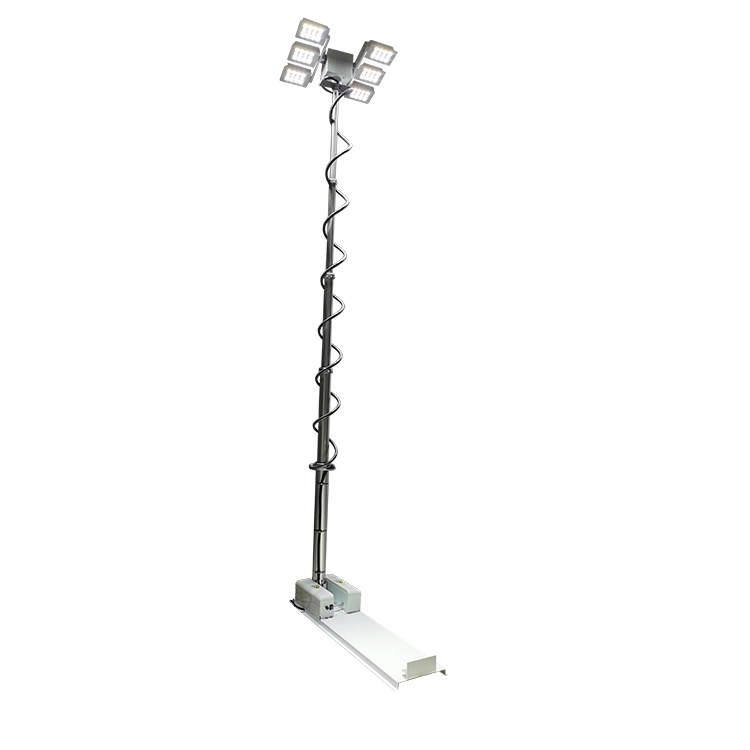

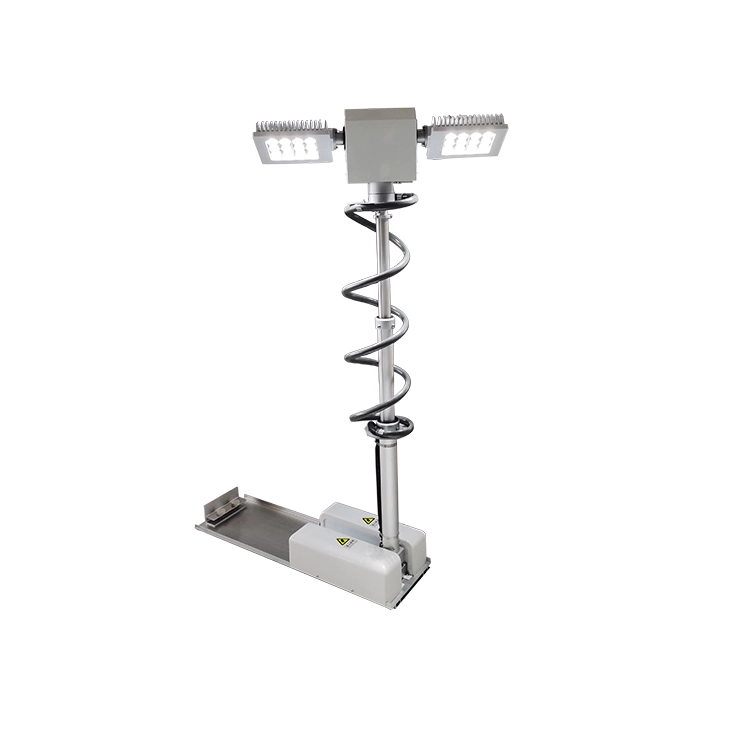

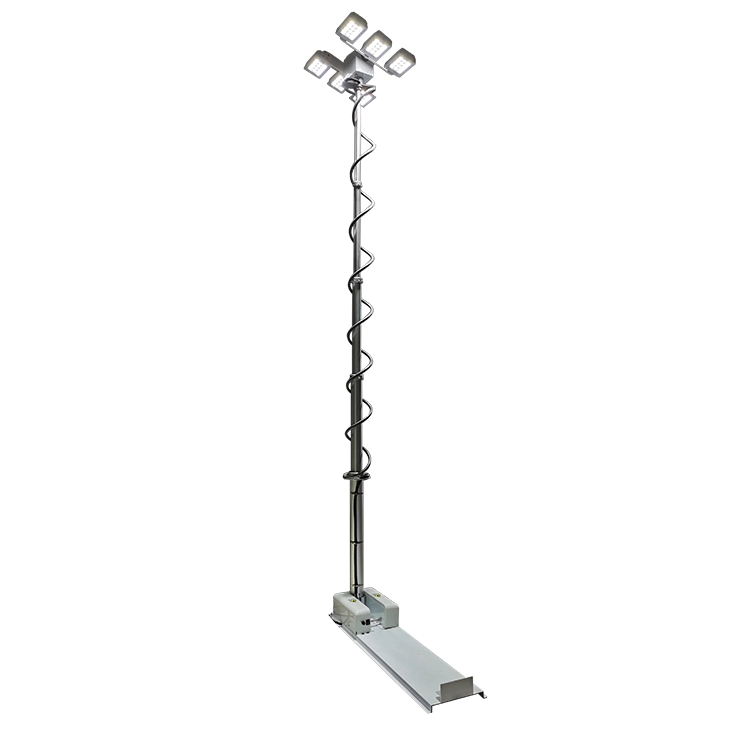

The 3.5m vehicle roof mount LED light tower produced by Homall's suppliers can maintain pressure for a long time through a high-sealing air path. It is equipped with remote control, dual circuit protection and a vehicle-start-prohibition structure to prevent accidental activation during driving. Once on site, it can quickly ascend and illuminate the area, making it highly suitable for emergency field operations such as night accident investigation, flood rescue, and road patrol.
The entire 3.5m vehicle roof-mounted LED light tower is equipped with segmented aluminum alloy telescopic tubes and has multiple sealing treatments for the pneumatic system. After being lifted, it can operate stably for 24 hours continuously without the need to repeatedly replenish air pressure. It will not slowly drop back during long-term on-site lighting. Operators can manually control the lifting and lighting switch within a safe distance of up to 400 meters. The light source in the 120-meter working radius has sufficient clarity of light, which is sufficient for on-site personnel to conduct detailed tasks such as evidence collection, material search, and written record keeping.
The electrical circuit is equipped with an automatic reset protection module for overvoltage and overcurrent. In case of voltage fluctuations or accidental operation, it will automatically cut off the circuit to protect the components, and will resume operation on its own after the fault is resolved, without the need for disassembly and maintenance. We have independently developed a pressure self-locking safety structure. When the vehicle is traveling at high speed or the road is bumpy, it can avoid the equipment accidentally rising due to collisions with branches and gravel by the switch, eliminating driving safety hazards.
The lamp head uses a high-power light source, with sufficient brightness for a single lamp. The continuous lighting lifespan can reach 10,000 hours, and it can withstand long-term, uninterrupted, and high-frequency lighting. The lamp cover is made of high-pressure heat-melt tempered glass, with a light transmission efficiency far exceeding that of ordinary glass. At the same time, it is resistant to high temperatures and impact, and will not crack due to exposure to the sun or impact from gravel. All control components of the entire machine use imported waterproof accessories, with a protection level of IP66. The electrical system will still operate stably in rain, dust, and humid environments.
The 3.5m vehicle roof-mounted LED light tower is a fixed vehicle-mounted device. Before driving, the pole body must be fully retracted and locked. It is strictly prohibited to drive with the raised light pole.
During long-term outdoor duty operations, it is necessary to regularly check the airway sealing rings to prevent sand and dust from entering the gaps and affecting the airtightness. This can prevent slow pressure loss problems.
The equipment comes with its own circuit self-healing protection function. Do not privately modify the wiring or remove the protection module. Otherwise, the overload protection capability will be lost, and the electrical components may be easily burned out.
The lamps will accumulate heat when they are continuously illuminated for a long time. Do not cover the surface of the lamp cover with obstructions to avoid the glass cracking due to high temperature.
The pressure safety lock is a core safety component. Do not disassemble or grind the pressure switch by yourself to prevent the loss of the anti-misoperation effect.
The equipment is only compatible with vehicle DC power supply. Do not directly connect to high-voltage mains power to avoid voltage breakdown causing the entire machine to fail.
A: It is installed using a roof sub-frame fixation method. No extensive cutting of the vehicle body is required. Most engineering vehicles, patrol vehicles, and command vehicles can be directly equipped. The modification workload is small.
A: The multi-layer sealed structure can ensure stable pressure throughout the day. As long as the sealing ring debris is cleaned regularly, the pole will not noticeably fall off even after hours or a whole day of static operation. It is suitable for long-term lighting deployment at the scene.
A: Wired manual control serves as the basic guarantee. With a 400-meter control distance, it is stable and reliable. In open and wide areas, there will be no signal loss, fully meeting the safety distance requirements for emergency rescue operations.
A: The switches and circuits are all made waterproof and dustproof to IP66 standards. The light source has strong anti-aging ability. As long as regular cleaning is done, outdoor and open-air use is unlikely to cause short circuits or damage.
