The China trailer Light tower supplied by Homall manufacturer can operate continuously without human supervision for several months. It does not produce exhaust pollution and does not require frequent maintenance. It is highly suitable for remote areas such as mining sites, construction sites, border security, temporary large-scale events, etc., which are far from the power grid. It is also a compliant equipment for night operations in ecological protection areas.

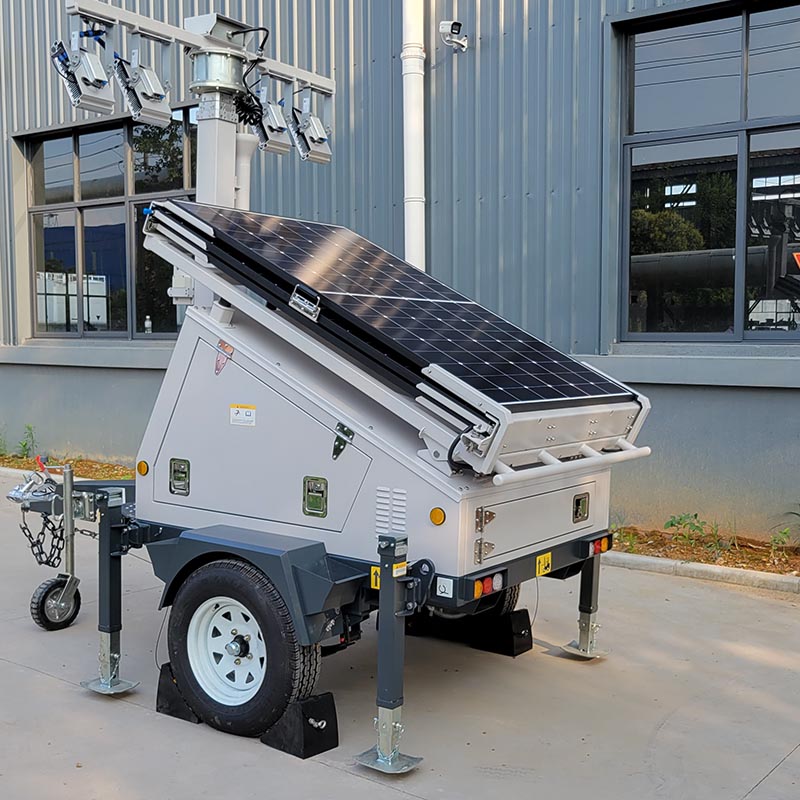

The entire trailer Light tower is configured in a modular industrial manner, allowing for flexible component combinations based on local sunlight conditions and power load. The voltage options are DC 24V and 48V. The solar array offers multiple power solutions, ranging from multiple 380W monocrystalline panels to high-power 455W photovoltaic modules, which can be freely selected. The retractable support frame enables flexible adjustment of the panel inclination, maximizing sunlight capture. The energy storage part supports gel batteries, AGM batteries, and lithium iron phosphate batteries, with a wide range of capacity options, which can meet the requirements for continuous power supply of different durations.

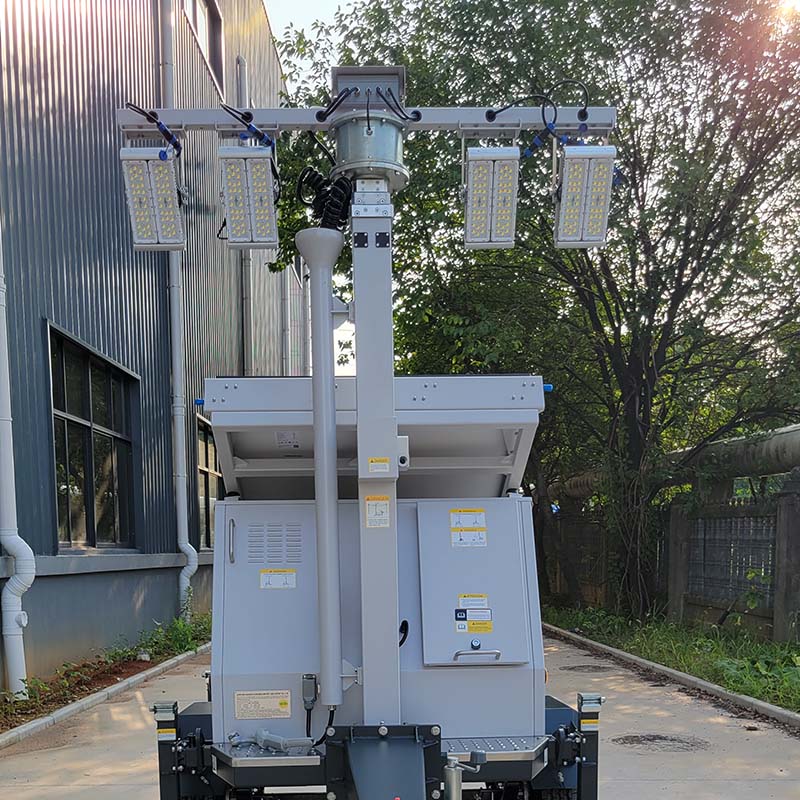

The lighting unit is equipped with multiple high-brightness LED light groups, with power ranging from 60W to 200W, and a universal installation bracket is reserved above the light frame, allowing for the installation of floodlights or the direct addition of pan-tilt cameras and various monitoring sensors, enabling dual use of lighting and security.
The lifting mast covers a range from 4 meters to 12 meters in travel. Three driving structures can be selected: manual winch, electric screw rod, and heavy-duty hydraulic. The mast body is made of anodized aluminum and galvanized high-strength steel, and square tubes and round tubes can be customized. The top of the standard model can support 100 kilograms, while the enhanced industrial version can support up to 500 kilograms. The light frame supports a 340° to 360° horizontal rotation lock, and the lighting and monitoring positions can be freely locked.
The trailer chassis is designed according to the towing standards for many European and American countries. Single-axis, double-axis, and triple-axis frame options are available as needed, and four adjustable support legs are paired. After landing, it can be adjusted and stabilized. The electrical compartment uses an IP65 to IP66 fully enclosed dustproof and waterproof cabinet, with mechanical compression locking and louvre ventilation structure. The battery compartment is equipped with an insulation layer, ensuring stable operation within the temperature range of -20°C to +50°C. After the entire frame is set up, it can withstand lateral winds of 117 to 135 kilometers per hour, and is not prone to deformation or overturning when placed outdoors in the open air.
The control system is equipped with an MPPT intelligent light-following controller, which comes with automatic dimming and timed start-stop programs, eliminating the need for on-site personnel to be on duty. The photovoltaic panels are equipped with transportation locking pins, which can be securely retracted and locked during towing and relocation to prevent damage to the panel surface due to strong winds.
As an alternative to fuel-powered lighting vehicles, the trailer Light tower can achieve zero emissions and zero noise in ecological protection areas and urban night construction sites, avoiding environmental control penalties and eliminating the need for frequent diesel purchases, significantly reducing long-term operating expenses.
For long-term deployment in remote mining areas, borderlines, and outdoor camps in the absence of power grids, it can continuously provide stable power for several months, ensuring the continuous operation of night lighting and security monitoring, without the need for dedicated personnel to stay and manage the equipment.
For temporary events, emergency rescue, and temporary enclosure projects, the trailer can be directly towed by a motor vehicle for rapid relocation, and can be put into use by lowering the legs and leveling them upon arrival, eliminating the cumbersome procedures of wiring and setting up temporary power distribution rooms.
This single machine can simultaneously provide lighting and remote monitoring, with one set of equipment completing site lighting, video monitoring, and environmental data collection, reducing the transportation and installation costs of multiple sets of equipment.
It can still provide continuous power supply even in extreme weather conditions, withstanding high and low temperatures and resisting strong wind and rain, suitable for long-term deployment in complex areas such as islands, deserts, and high-altitude cold regions.
A: We can increase the capacity of the photovoltaic panels and batteries based on the local sunlight duration. During the day, we can store enough electricity, so even if it's a continuous cloudy day, the lighting can be continuously powered without interruption.
A: Four heavy adjustable legs are placed on the ground to level it, and combined with the high wind-resistant mast structure, the stability during operation meets the rated wind speed requirements. In case of extremely strong gusts, the mast can be retracted in advance to avoid wind load risks.
A: The cabinet achieves IP66 sealed protection, preventing outdoor rain and sand from entering. For use at the seaside, the anti-corrosion coating and stainless steel accessories can be upgraded to delay salt corrosion and extend the lifespan of the entire machine.
A: Absolutely possible. The top support bracket can directly carry cameras, radars, and sensors. Removing the lighting components and converting it into a pure off-grid security power station allows for flexible and streamlined configuration.
A: The frame is produced strictly in accordance with the European and American DOT road towing standards. The axles, traction connectors, and braking systems can all meet the requirements for overseas registration. The export procedures are fully equipped.
A: The MPPT controller comes with a charging and discharging protection program. It automatically stops charging when fully charged and cuts off the load when the voltage is low. This effectively protects the energy storage battery and makes it less likely to bulge or be scrapped during long-term static operation.
