An Electric telescopic mast is a self-supporting, vertically extending structure driven by an integrated motorized system. It eliminates manual cranking and pneumatic assist, delivering push-button height adjustment with exact positioning. Homall designs its masts for rapid deployment in mobile communication, surveillance, lighting, and tactical applications where reliability under load and wind is mandatory. The mast extends and retracts on DC or AC power, using synchronized lead screws, belt drives, or chain drives depending on the payload and duty cycle. All structural alloys are 6061-T6 aluminum with anodized finishes; locking collars and guide rings are engineered for zero-backlash operation.
Homall masts are built to operate in temperature bands from -40 °C to +65 °C and allow full extension in sustained winds up to 120 km/h when properly guyed. The standard surface treatment resists salt fog per ASTM B117 for 1,000 hours, making the mast suitable for coastal and offshore deployments. Ingress protection for the drive unit is rated IP66, while the mast column itself is sealed with overlapping tube sections and integrated drain paths. Every mast undergoes a factory acceptance test that includes five consecutive full-stroke cycles at maximum payload and a side-load deflection test recorded on a calibration certificate.

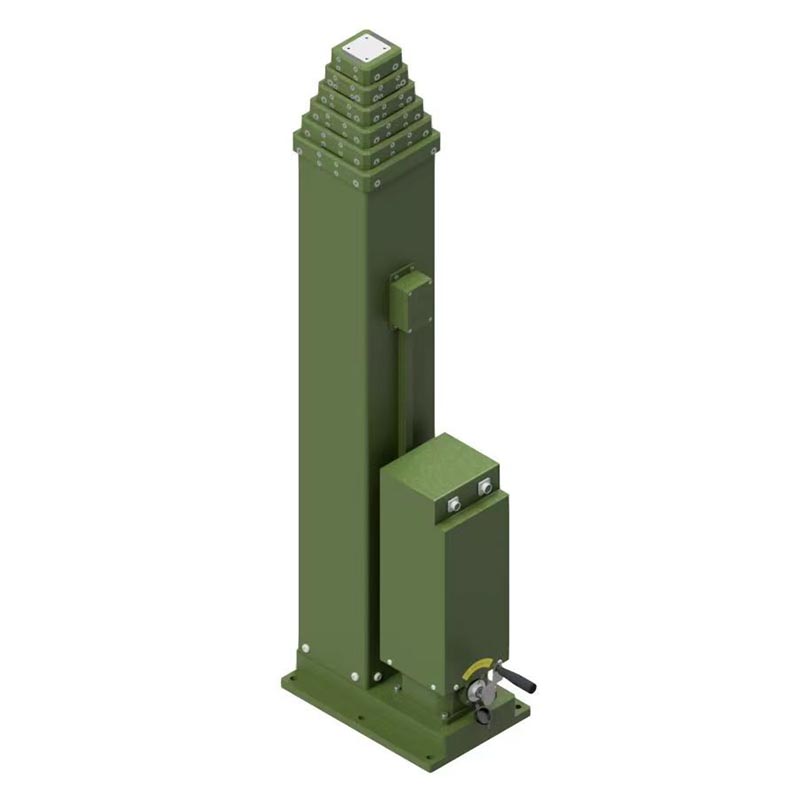

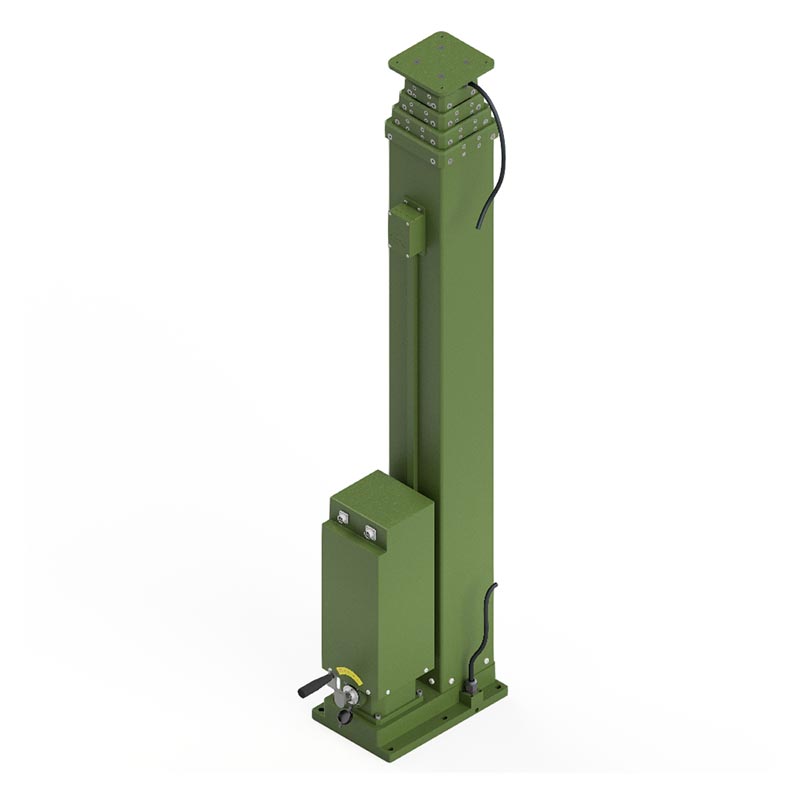

This series includes products such as Cable Built Inside Electric Mast, Spindle rope driven telescopic mast, etc.
Homall leverages twenty years of field feedback to continuously refine the mast line. The modular architecture means that every mast can be optioned with wind sensors, auto-retract logic, heated motor enclosures for Arctic deployments, or mil-spec circular connectors. Whether you need a single standalone mast or a fleet of hundreds integrated into purpose-built vehicles, the design files are maintained in native 3D to accelerate your project timeline.
For any commercial or technical inquiry, Homall application engineers match the exact mast configuration to your site conditions, wind map, and payload dynamics. The team typically delivers a full quotation with lead time, dimensional drawings, and compliance statements within two working days. Request the Homall Electric Telescopic Mast catalog to access complete kinematic graphs, deflection curves, and mounting interface libraries.
