Foldable Electric Mast

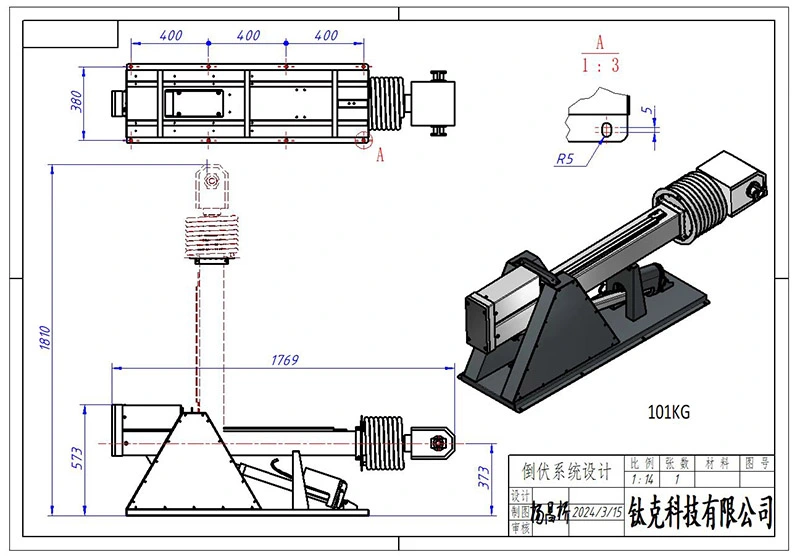

The foldable electric mast supplied by Homall Manufacturer has a total weight of 101KG. It is divided into four core modules: base inverted support, multi-stage telescopic mast, electric drive component, and spiral cable protection sleeve. When the entire machine is retracted, it can be fully horizontally inverted and stored without the need for high-altitude disassembly. A single person can complete all the lifting and inversion operations.

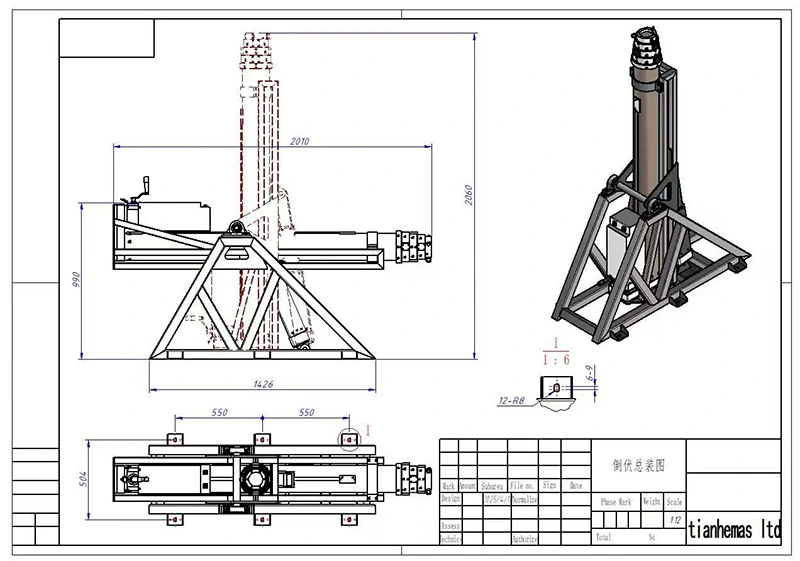

The product supports custom total height of 2-12 meters. The telescopic section of the mast is made of high-strength aluminum alloy profiles, and the base has a thickened carbon steel triangular load-bearing structure that is stable. The dedicated spiral telescopic cable sleeve is used to protect the internal wires, preventing wear and tear caused by lifting and pulling. All processing dimensions are standardized and controlled through professional drawings. The details of the holes and rounded corners are produced strictly in accordance with industrial equipment tolerance standards, meeting the requirements of various top load carrying applications such as emergency lighting, signal transmission, monitoring cameras, etc.

The entire machine supports full customization: the size of the base, the number of mast sections, the power of the electric motor, the inversion angle, and the surface spraying color can all be modified as needed. It can also be matched with mobile lighting towers, special engineering vehicles, and fixed monitoring stations in the wild for complete set of matching use.

Purpose

1. Emergency rescue lighting

2. Special vehicle-mounted equipment

3. Outdoor broadcasting and communication

4. Precision outdoor inspection

5. Security monitoring and control

6. Temporary outdoor base stations

Brand factory strength

Homall has been deeply engaged in the research and manufacturing of telescopic mast complete equipment for twenty years. It is located in its own physical production factory in Wenzhou, with a factory area of 4,000 square meters. The full-time team for research, processing, and assembly consists of 30 people. It has a complete industrial chain covering structural scheme research, precise sheet metal cutting and welding, metal surface anti-corrosion treatment, and complete system integration and assembly of the entire machine.
Unlike trading merchants who only engage in distribution in the market, we have a complete set of independent processing machines and finished product durability testing equipment. From profile cutting to the entire machine's factory production, everything is completed independently. Production delivery time and product quality are not restricted by third-party intermediaries. We belong to a heavy asset, physical production enterprise.

Working principle

1. Inverted Storage Process

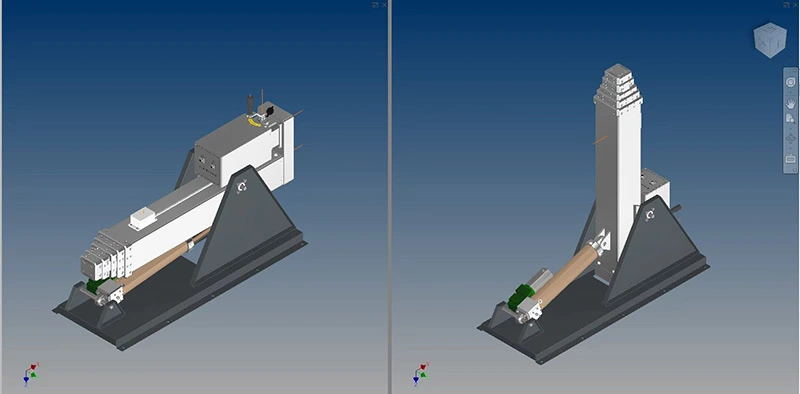

The bottom of the equipment is equipped with an electric inverted driving mechanism. After starting the motor, the entire telescopic mast, with the hinge point of the base as the center, smoothly tilts downward and finally fits perfectly with the base bracket. After being retracted, the overall height of the machine is significantly reduced, facilitating transportation, storage, and transportation. The entire process is electrically and automatically controlled, without the need for manual lifting and disassembly.

2. Mast Extension and Retraction Process

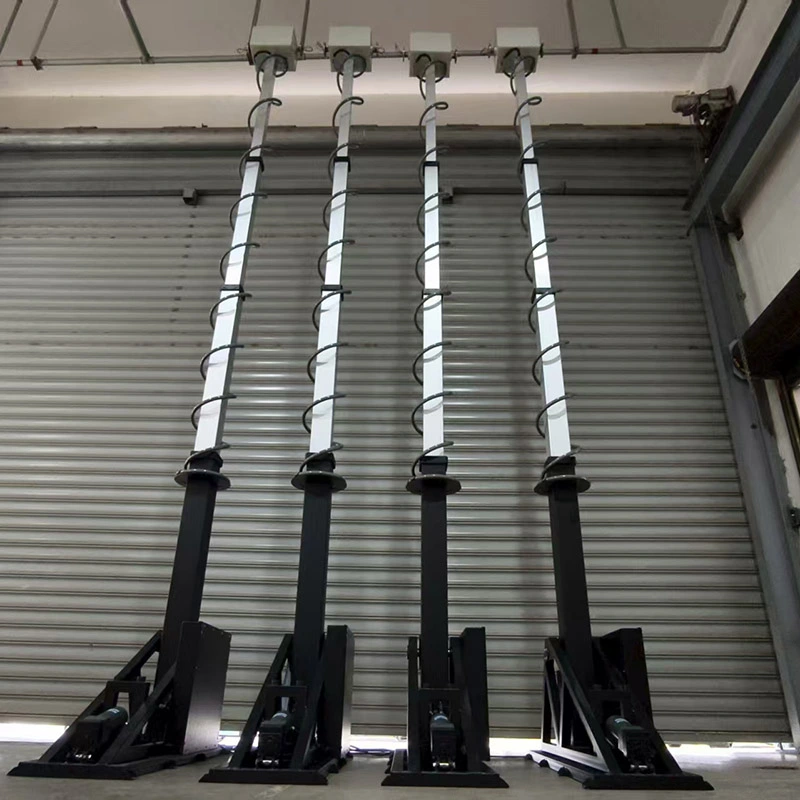

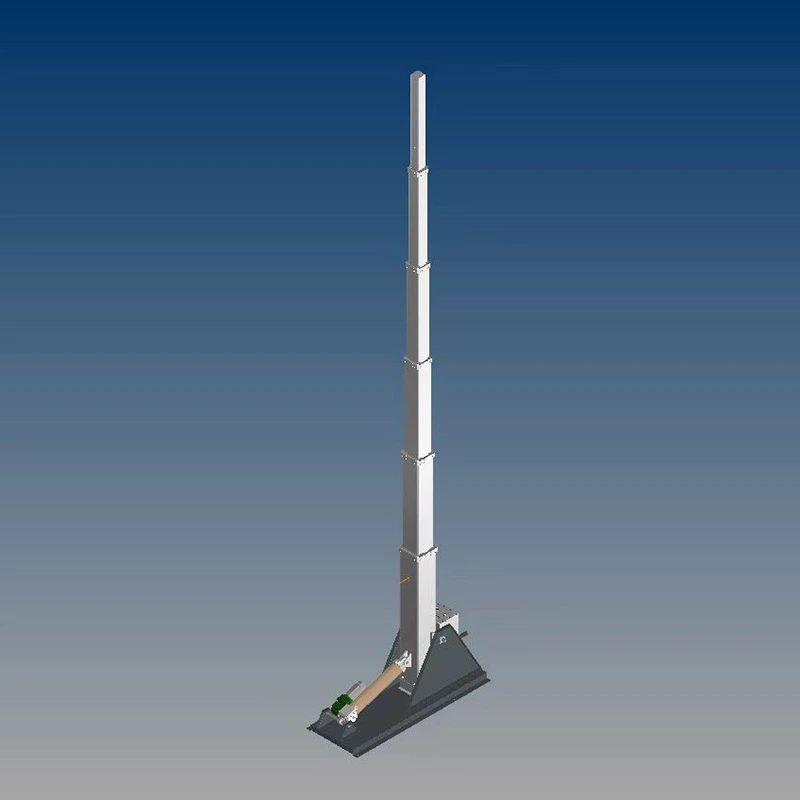

After being inverted to the vertical working position, start the lifting motor. The multi-level aluminum alloy inner sections of the mast extend layer by layer, and can be stopped at any height by locking; the outer side of the mast is equipped with spiral corrugated tubes, which stretch / contract synchronously with the extension / retraction, and completely enclose the internal power lines and signal lines to prevent bending, friction, and damage.

3. Structural Load Stabilization Principle

The base adopts a triangular reinforced steel structure to distribute the load weight at the top, and the thickened steel plates are welded to form it. Standard fixed holes are reserved at the ground / vehicle installation positions; each extension section of the mast is equipped with a limit clamping device, and when raised to the maximum height, it automatically cuts off power to prevent over-inversion, and both the inverted and retraction systems are equipped with dual load-bearing protection structures, maintaining the stability of the machine without shaking in outdoor strong wind conditions.

FAQ

1. Q: Is Homall a trade intermediary or a factory with its own production facilities?

A: We are an entity manufacturing company with our own processing workshop, and we do not have any third-party OEM distribution business.

2. Q: What is the maximum extension height of the foldable electric mast?

A: The standard specification covers 2–12 meters, and special heights can be customized according to drawings.

3. Q: Can various devices such as lighting, monitoring, and antennas be installed at the top of the mast?

A: Yes, it is supported. The thickness of the mast wall and the motor power can be adjusted according to the load weight.

4. Q: Does the entire machine support changing the color of the exterior and the installation size of the base?

A: All are supported. Exclusive processing drawings can be provided according to customer requirements.

5. Q: Are both the tilting and lifting operations fully electrically controlled?

A: The standard model is fully electrically driven. Optional manual emergency hand-crank devices can be added as needed.

6. Q: Will the metal parts rust when the equipment is used outdoors in continuous rain?

A: The entire machine is treated with anti-corrosion spraying. In coastal and humid environments, the anti-corrosion process can be upgraded and thickened.

7. Q: If the equipment breaks after purchase, can the supply of components be guaranteed?

A: Original factory parts are in long-term stock. Lifelong remote technical guidance is also provided.
