The China Hand Pump Pneumatic Light Weight Mast sold directly by Homall Factory has a total weight strictly controlled within 30 kilograms. It is lightweight, compact in structure, and takes up a small space when folded. It can be independently carried, transported and set up on-site by one person, and is highly suitable for short-term operations such as field surveys, temporary lighting, outdoor inspections, and temporary setup of mobile signals.

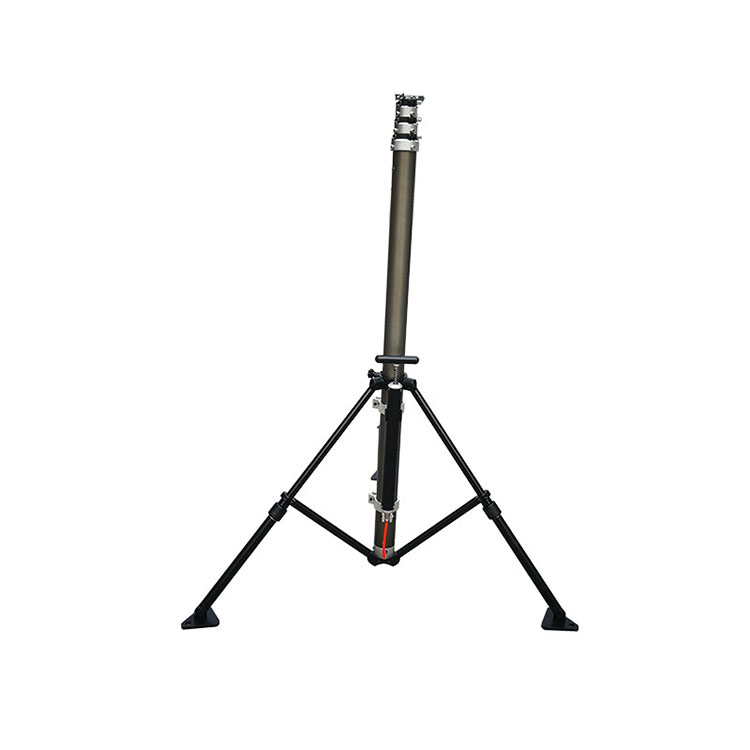

The standard configuration features a tripod-compatible support structure, allowing for both floor-standing and vertical installation. It can also be flexibly fixed without the support, suitable for various outdoor working environments. The equipment's height adjustment range is customizable, focusing on lightweight payload carrying. It is a highly adaptable device for lightweight and mobile lifting operations in the outdoors.
Simulate the scenario of a single soldier's operation in the field. Throughout the process, no auxiliary tools are required. The operator independently completes the unpacking, setup, manual inflation and elevation, alignment and fixation of the entire system. The actual test shows that the entire setup process takes a short time, has a low operational threshold, and requires little physical exertion. It is suitable for the needs of rapid mobile setup in the field and fully meets the time requirements for emergency temporary operations.
Carry out pressure retention tests according to the industry pneumatic equipment testing standards. After the mast is raised to the rated height, it is left to stabilize and maintain pressure in a static state. In the conventional outdoor environment, the air pressure decays slowly, and there is no obvious rod drop or return phenomenon during short-term operations. After multiple expansion and contraction cycle tests, the internal sealing components do not have aging, leakage, or jamming problems. The manual pump inflating feels consistently even and smooth.

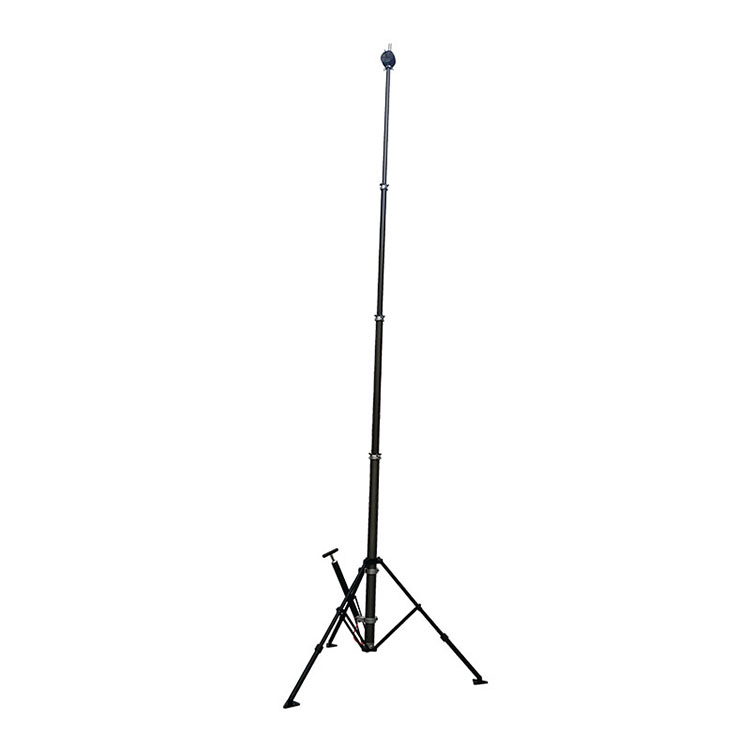

After the complete setup with a tripod, simulate the normal outdoor wind conditions. The overall uprightness of the mast is good, with no obvious shaking or deviation. When equipped with lightweight lighting and small antenna equipment, the center of gravity is stable, and there will be no tilting or collapse. The safety of outdoor static operations is high.
After undergoing dry-wet alternation and sand-dust simulation tests, the surface of the mast is not prone to accumulate dust or rust. The opening and closing of the movable sections are smooth. In harsh outdoor environments, there will be no jamming, failure of elevation, or abnormal operation. It is suitable for complex conditions such as deserts, rural areas, and open spaces.

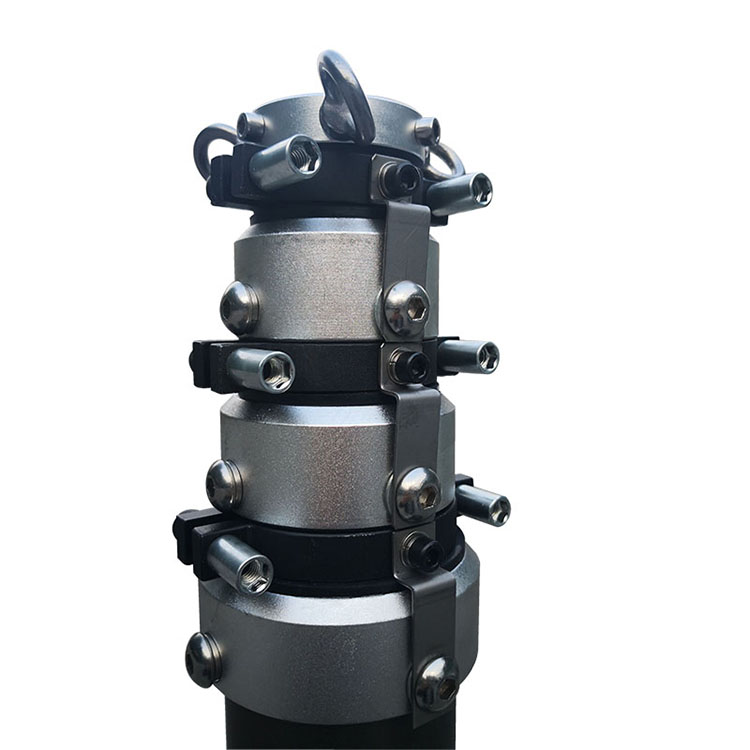

Select a model with a stainless steel tension kit. After multiple lifting and stretching tests, the tension of the steel wire rope is uniform and does not loosen easily. This effectively ensures the synchronous lifting of multiple sections of the mast, eliminates unilateral deviation and non-synchronous lifting problems, and has a very low deformation rate over a long period of use.
Different from electric and fully automatic pneumatic masts, this Hand Pump Pneumatic Light Weight Mast is driven by manual pump pressurization. It has no electrical components and no wiring hazards. It can be used normally even in remote and wild areas without electricity or equipment support. It is suitable for scenarios of power failure, no mains power supply, and no on-site infrastructure construction.
The overall lightweight structure is optimized, with a weight of less than 30 kilograms. After storage, it has excellent portability. No vehicle assistance for transportation is required. Staff can carry it into the site on foot, significantly improving the flexibility of mobile operations in the wild.
Supports dual-mode installation. It can be set up in a tripod stand-up or floor-standing manner, suitable for open and outdoor areas. It can also be dismantled and directly fixed and mounted, suitable for narrow spaces, vehicle-mounted temporary mounting, and other scenarios. The scene adaptability is far superior to fixed-type lifting masts.
Abandon complex electronic control systems and debugging processes. The entire process is manual inflation for lifting, pressure release for falling back. The logic is simple and intuitive. No professional training is required. On-site personnel can quickly complete the lifting, alignment, and storage of the entire operation, reducing labor costs for the operation.
Optional stainless steel wire rope tension components can be added as needed to balance the tension of the boom body during lifting. This allows for more uniform and synchronous extension and contraction of the multi-section mast, reducing shaking and deviation, and further improving the equipment's carrying accuracy and service life.
Our hand pump pneumatic lightweight mast can be customized with different extension heights according to customer operation requirements. It is specifically adapted to low-load operation scenarios such as lightweight lighting, small monitoring antennas, and outdoor portable equipment. The customization fit is higher.
No need. The equipment supports free switching of usage modes. In open areas, a tripod can be added for stable installation. In narrow or fixed mounting scenarios, the support frame can be directly removed for direct installation. The usage method is flexible and unrestricted.
No. The equipment has optimized the structure of the manual pump and the internal friction coefficient, resulting in a smooth and even inflation and pressurization feel. A single person can easily complete the lifting operation, and it won't overly consume physical energy during long-term operation. It is suitable for single-person outdoor operations.
Support for personalized customization is available. Based on users' outdoor operations, equipment mounting, and site layout requirements, the adjustable extension height can be customized to meet the lifting operation standards for different scenarios.
The segmented sealing structure of the equipment has been optimized for dust prevention, capable of resisting daily sand and dust intrusion. Under normal outdoor conditions, the lifting is smooth and the sealing is stable, making it less likely to experience stuck or air leakage faults. Daily maintenance is basically unnecessary.
The wire rope tension kit is an optional upgrade configuration. For routine light-duty operations, it is not necessary to install additional components; for high-frequency, high-precision, and high-stability operation scenarios, it can be selected as needed, further enhancing the overall operational stability of the mast.
When used with a tripod, the supporting stability is sufficient. Under normal outdoor wind conditions, it can perform stable static operations and is suitable for regular temporary site deployments. In extreme strong wind conditions, the lifting height can be appropriately reduced to ensure the safety of the equipment.
The product is mainly designed for short-term, temporary, and mobile operations outdoors, suitable for scenarios such as emergency lighting, monitoring, and signal deployment for several hours to a single day. It is the preferred equipment for outdoor mobile and lightweight operations.
