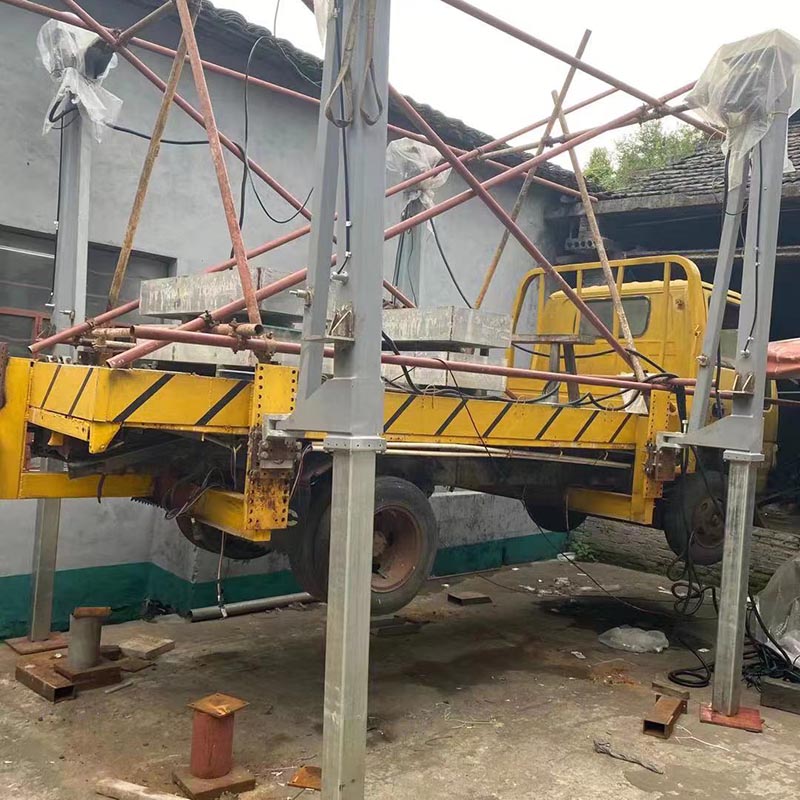

Designed for critical field tasks—including mobile field hospitals, disaster relief command centers, and tactical communication shelters—this Homall's China standard container lifting jack system allows a single operator to lift, level, and demount a fully loaded container from a truck chassis in minutes, freeing the transport vehicle for continuous logistical loops.

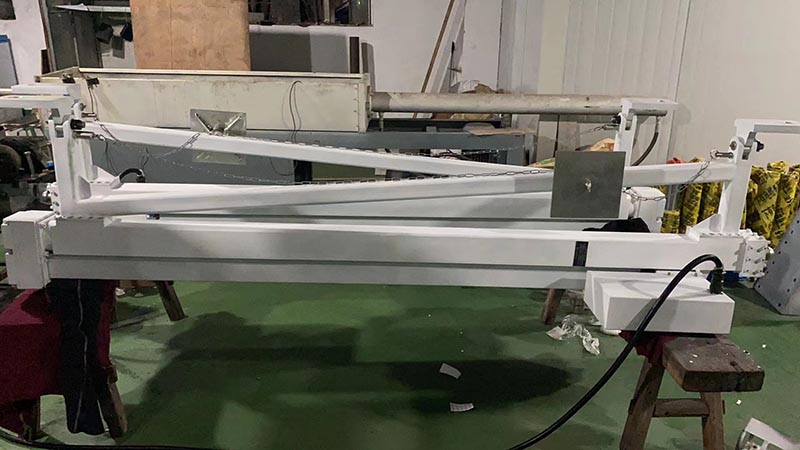

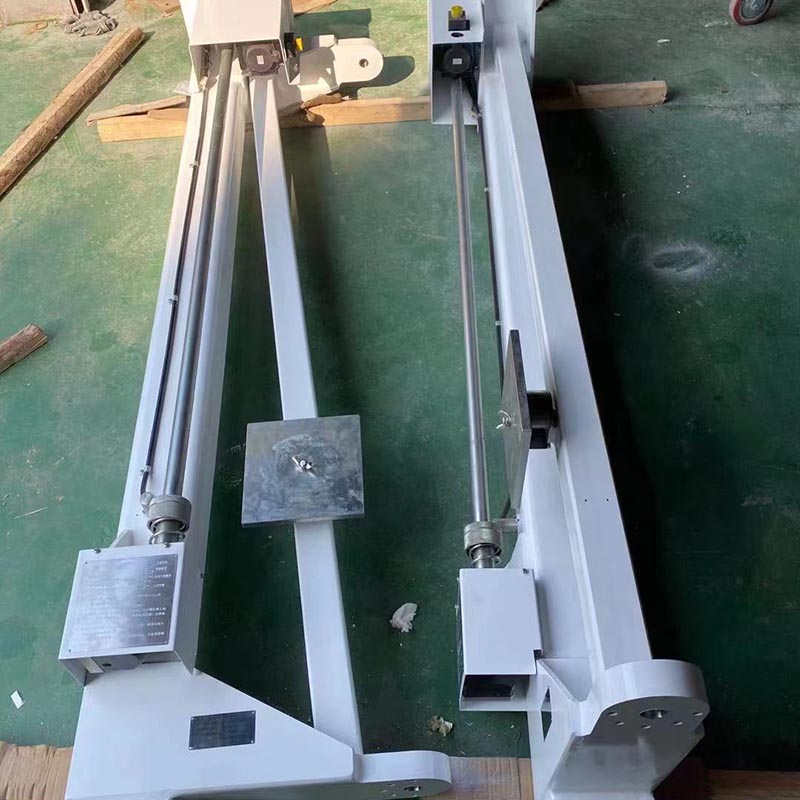

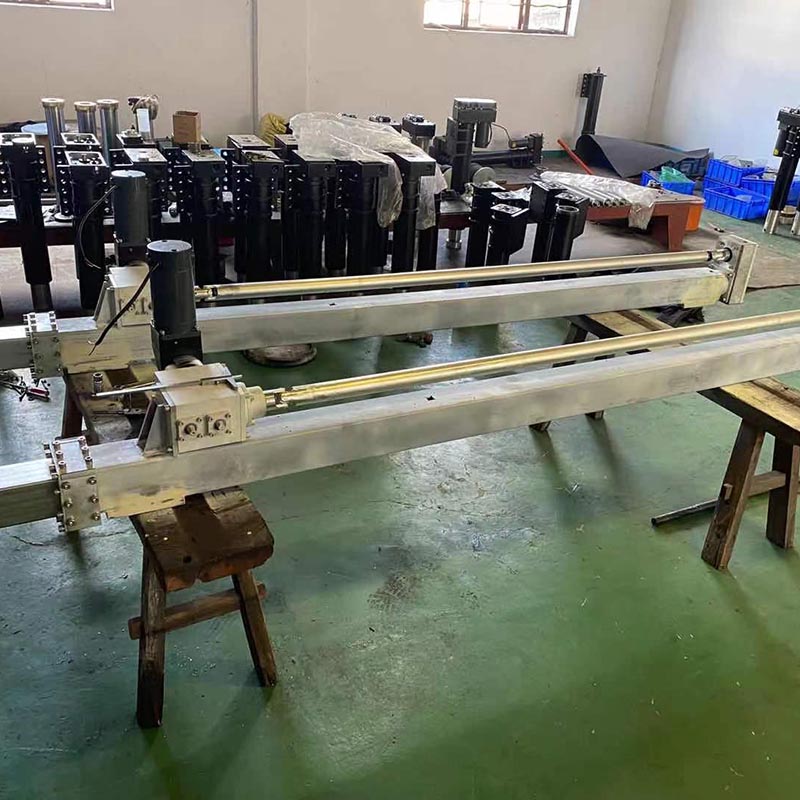

As featured in our precision workshop layout, each jack leg utilizes a heavy-duty external lead screw running parallel to a reinforced structural steel guide channel. This dual-axis mechanical design distributes massive vertical loads evenly, preventing binding or deflection under high lateral stress.
The system interfaces directly with standard ISO 1161 corner castings. The heavy-duty bracket arms swivel and lock securely into the container's corner points, ensuring a rigid, slip-free connection that can remain permanently attached to the shelter during both highway transit and field deployment.
Driven by a high-efficiency trapezoidal screw and nut mechanism, the AtlasLift 20C provides absolute positional security. Unlike hydraulic leveling systems that suffer from fluid seals degrading and pressure drift, this pure mechanical drive locks inherently at any height. It will hold its exact position indefinitely under a full load without drifting a single millimeter.
Powered by high-torque DC electric motors (available in 12V, 24V, or 48V variations) linked to a central control unit. The system features electronic synchronization to ensure all four corners lift perfectly level, protecting sensitive interior medical or electronic equipment from torsional stress during operation.
Each jack leg terminates in an oversized, ball-jointed articulating footpad. This allows the foot to conform perfectly to uneven terrain, mud, gravel, or sloped asphalt, spreading the structural footprint and ensuring an unyielding foundation.
Built to withstand the absolute worst field conditions. The drive screws are treated with advanced anti-corrosion coatings, and the electrical motor assemblies are fully sealed against water ingress, dust, and ice—ensuring immediate deployment capability in temperatures ranging from -30°C to +55°C.
| Parameter Performance | Standard Configuration | Heavy-Duty Upgrade |
| System Lifting Capacity(Set of 4) | 10 Metric Tons(10,000 kg) | 20 Metric Tons(20,000 kg) |
| Static Holding Capacity | 15 Metric Tons(15,000 kg) | 25 Metric Tons(25,000 kg) |
| Maximum Stroke Height | 1,200 mm to 1,500 mm | Custom up to 1,800 mm |
| Power Selection Options | 24V DC/48V DC Standard | 220V AC/380V AC Optional |
| Lifting Velocity | Approx.250 mm/min | Approx.400 mm/min |
| Drive Interface | Dual-Mode:Motorized DC/Manual Emergency HandCrank | Dual-Mode:Motorized DC/ Manual Emergency Hand Crank |
| Structural Material | High-Tensile Structural Steel(Q355B/ST52-3) | Ultra-High-Yield Alloy Steel |
| Ingress &SealingProtection | IP66 Weatherproof Sealed | IP67 Marine Grade |
| Wind Load Threshold | Fully deployed up to 120 km/h | Fully deployed up to 140 km/h |
